Alan Smith has launched a site that will host the Light and Easy series in addition to other Microsoft related webcasts. If you are interested in seeing this webcast here is the link: http://www.cloudcasts.net/ViewWebcast.aspx?webcastid=2521554266599869567
If you have any questions or comments about the webcast, feel free to leave a comment on the blog.Alan Smith has launched a site that will host the Light and Easy series in addition to other Microsoft related webcasts. If you are interested in seeing this webcast here is the link. http://www.cloudcasts.net/ViewWebcast.aspx?webcastid=2521554265716170751
If you have any questions or comments about the webcast, feel free to leave a comment on the blog.
Looks like Riderville (Regina) is off the list this year if you are from Saskatchewan you will want to head to Calgary or Winnipeg.
There is currently an early bird special special of $299 which is a savings of $300. I went last year and you can't go wrong with a Microsoft conference at this price point. The session agendas include a wide variety of topics so whether you are a hardcore developer or IT Pro you are bound to learn something new at this conference.
Follow this link for more details.
I have highlighted two issues with this script in red:
Option Explicit
On Error Resume Next
Dim sComputerName, oWMIService, colRunningServices, oService, colProcessList, objProcess
If Wscript.Arguments.Count = 0 Then
sComputerName = "."
Call ServStat
Wscript.Quit
End If
Sub ServStat
Set oWMIService = GetObject("winmgmts:" _
& "{impersonationLevel=impersonate}!\\" & sComputerName& "\root\cimv2")
Set colRunningServices = oWMIService.ExecQuery _
("Select * from Win32_Service where DisplayName='Distributed Transaction Coordinator'")
For Each oService in colRunningServices
'Wscript.Echo oService.DisplayName & VbTab & oService.State
if (oService.State="Stopped") Then
'Wscript.Echo "Stopped"
' find the dllhost
Set colProcessList = oWMIService.ExecQuery ("SELECT * FROM Win32_Process WHERE Name = 'DLLHOST.EXE'")
For Each objProcess in colProcessList
if inStr(objProcess.CommandLine, "6D06157A-730B-4CB3-BD11-D48AC6B8A4BB")>0 then
'Wscript.Echo objProcess.ProcessId
Dim objShell
Set objShell = CreateObject("WScript.Shell")
objShell.Run "cmd /k kill -f " & objProcess.ProcessId & "& exit"
WScript.Quit
end if
Next
end if
Next
End Sub
The MQSAgent2 ID (BizTalk 2006) is C691D827-19A0-42E2-B5E8-2892401481F5.
My testing to this point have been very successful. I have not had to manually intevene whatsoever and have not lost any messages when failing resources over or rebooting servers. The only delay that you will see is if you have messages inflight while you bounce resources is that if the Queue is still down that BizTalk will use the Send Port's configuration to issue retries. This is very standard BizTalk behaviour and is performing as expected.
So what does this script do? It essentially looks to see if the DTC service is running on the node that this script is running on. If the DTC service is running, the script will exit since we still need the MQSAgent to run on this server with DTC. If DTC is not running then it will look for a process called 'DLLHOST.EXE' that has a Process ID (PID) of the MQSAgent. If it finds an instance of this process it will terminate it so that this process does not lock up BizTalk from sending or receiving messages with MQ Series.
This sounds like an opportunity to cluster the MQSAgent application. However, the guidance from Microsoft is to not cluster it:
I then saved a copy of this data into a text file, ran it through the BizTalk Flat file schema wizard, created a Receive Pipeline based upon this schema and now had "typed" data for use inside of BizTalk.At this point, I was a little unsure of what Yahoo was expecting when I made this Http Request. I created a "dummy" schema which only had a root node and figured that I would submit the request to Yahoo to see what was going to happen. Initially, I had a static send port where I hard coded the URL. The URL was very important since it contains the HTTP Request query parameters. I figured that once I get this working, then I will focus on making it dynamic so that the client application can drive which stock quote is returned.
However, this is when I started to run into issues. When I tried to run my application using this configuration I was prompted with the following response from YAHOO: Missing Symbols List.
Based upon this error, I figured that something was up with the query parameters. Yahoo is expecting something along the lines of ?s=MSFT&d=t&f=sl1d1t1c1ohgvj1pp2wern to be past as part of the HTTP Request. After performing some BING searches someone suggested using a dynamic send port to pass these query parameters in. That didn't help either.
I then decided to open up Fiddler to see what was being passed as a successful request. Fiddler is a tool that can be used to inspect HTTP Requests and Responses.

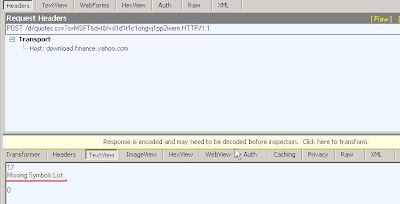

When you use the Request Builder feature in Fiddler, it will default the HTTP request mode to "GET". It makes sense, but I then thought what if I switch this to POST? Look for the red line towards the bottom of the next image: "Missing Symbols List".

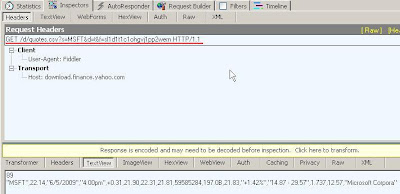

At this point, I am starting to understand the problem a little better. After another Bing search, I found the following document that indicates: "The HTTP send adapter gets messages from BizTalk Server and sends them to a destination URL on an HTTP POST request". Using Fiddler, I was able to determine that using a GET request worked without issue. Now knowing that the BizTalk HTTP Adapter is going to use a POST request, I figured that I needed to be able to get Fiddler to work with a POST request and then get BizTalk to use this same approach when posting data to Yahoo.
I am not going to get into the differences between POST and GET here as it has been done so many times before, but here is a good summary of the differences.
Since the query string is essentially being ignored anyways, I removed it from the URL Address text box. I then copied the query parameters into the "Request Body" text box without the '?'
Success!
The next challenge is to get BizTalk to pass this data through the HTTP adapter as a POST request.
I found an old forum post by CranCran77 that discussed sending a message of type RawString to a different website that was also looking for HTTP Get. I have used the RawString class before when sending emails via BizTalk, so I was able to add this class to my project quickly.
After the message is sent, I can look in the tracking database and can see that this data was transmitted as part of the message body.
